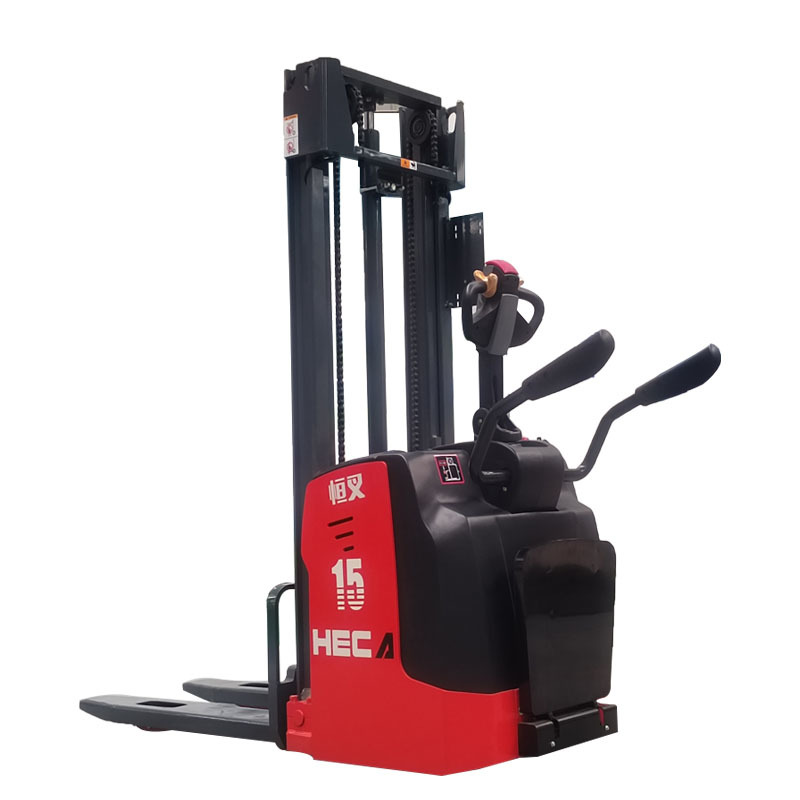

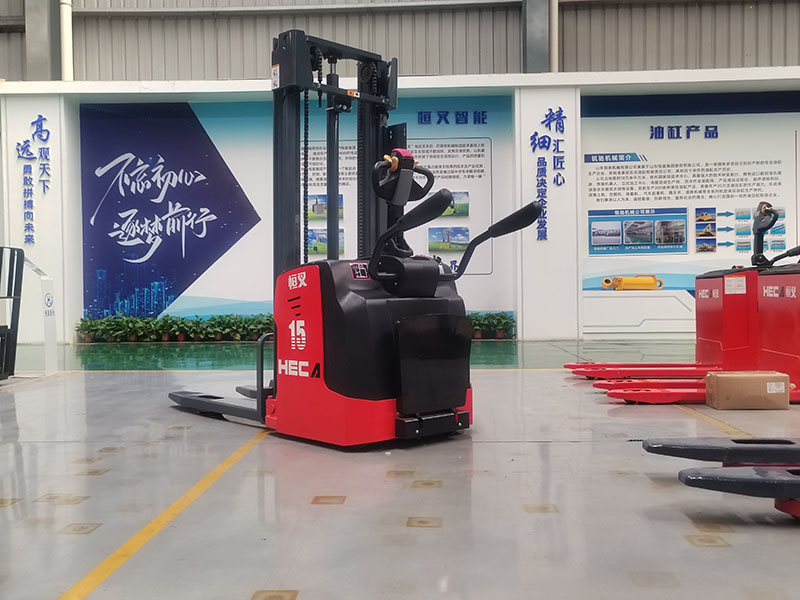

Standard configuration: two-level standard gantry, standard lifting 3000mm, load lifting capacity, equipped with 210Ah power battery, 50A external horizontal charger, vertical walking AC motor, DC lifting motor.
Standard configuration: two-level standard gantry, standard lifting 3000mm, load lifting capacity, equipped with 210Ah power battery, 50A external horizontal charger, vertical walking AC motor, DC lifting motor.
| Features | Drive method | Full Electric | |

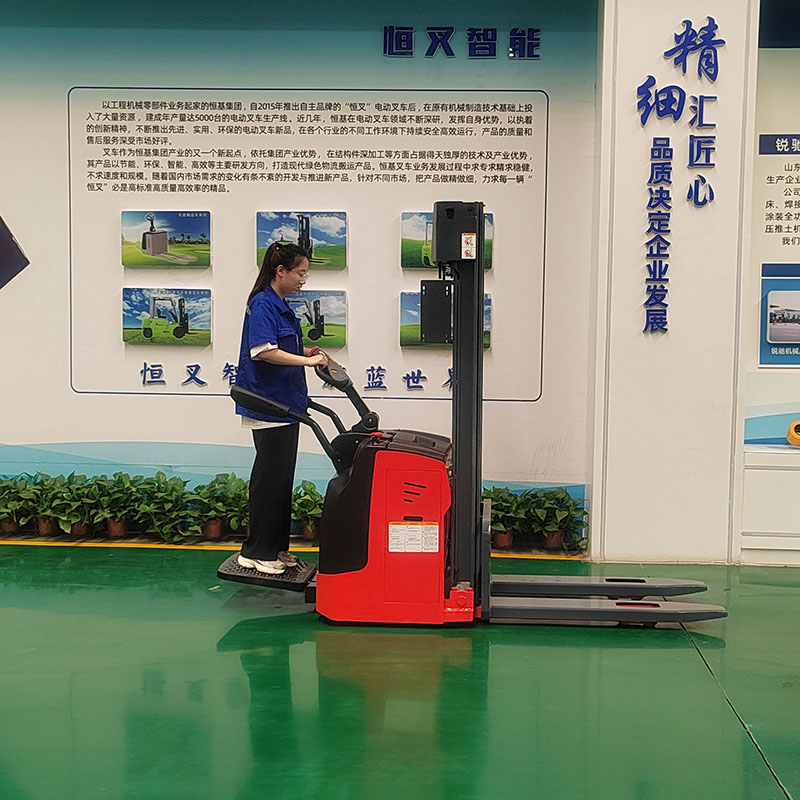

| Driving style | Standing style | ||
| Rated Lifting Weight | kg | 2000 | |
| Load center distance | mm | 600 | |
| Load distance | mm | 988 | |
| Wheelbase | mm | 1420 | |
| Weight | Self weight (without battery) | kg | 1210 |
| Battery weight | kg | 24 | |
| Total weight | kg | 1199 | |
| wheels | Tire type | polyurethane | |
| Wheel size front wheel | mm | 85*70 | |
| Wheel size rear wheel | mm | 130*55 | |
| Number of wheels front/rear | 4/(1+2) | ||
| Front wheel track | mm | 390 | |
| Support wheel track | mm | 505 | |
| Size | Lift height | mm | 3000 |
| Minimum/maximum distance of the handle from the ground during operation | mm | 1060/1484 | |
| Fork ground clearance | mm | 30 | |
| height when the fork is lowered | mm | 95 | |
| Total length | mm | 2080 | |
| Fork surface to front distance | mm | 1150 | |
| Body width | mm | 855 | |
| Standard gantry can’t lift height | mm | 2135 | |
| Fork size | mm | 180*55*1150 | |
| Fork width | mm | 690 | |
| Right-angle stacking minimum aisle theoretical width pallet 1200*800, 1200 placed along the fork | mm | 2625 | |
| Right-angle stacking minimum aisle theoretical width pallet 1200*800, 800 placed along the fork | mm | 2650 | |
| Turn radius (pedals up/down) | mm | 1645/2145 | |
| Performance | Travel speed (laden/unladen) | Km/h | 4/4 |
| Lifting speed (full load/empty load) | Mm/s | 99/120 | |
| Descent speed (full load/empty load) | Mm/s | 120/65 | |
| Maximum grade (full/unloaded) | % | 5 | |
| Powertrain | Service braking method | Electromagnetic brake | |
| Drive motor rated power | kw | 3 | |
| Rated power of oil pump motor | kw | 3 | |
| battery (optional lithium battery) | V/ah | 24v/210ah | |
| Controller model | Curtis1232e |
